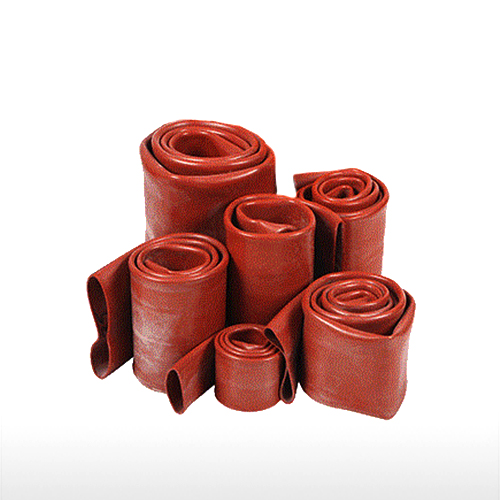

Silicon Sleeve
SILICON can be offered in a sleeve design instead of coating, which translates to less roll repair time. Sleeves are readily available in commonly used roller diameters. Instead of sending rollers for reworking when there is failure, Silicon Sleeves can be easily removed and replaced with relatively inexpensive replacement sleeves. Downtime is significantly reduced for a properly designed treating station. A spare roll is normally recommended in addition. These benefits along with excellent electrical strength of silicon, makes it a popular dielectric material.
Sleeve ID | Sleeve Wall Thick | Bare Roller OD |
---|---|---|
36MM ID +/-0.25MM | 2MM +/-0.2MM | 45 |
42 MM ID +/-0.25MM | 3.5MM +/-0.2MM | 55 |
57 MM ID +/-0.25MM | 3MM +/-0.2MM | 70 |
65 MM ID +/-0.25MM | 3MM +/-0.2MM | 75 |
75 MM ID +/-0.25MM | 3MM +/-0.2MM | 85 |
89 MM ID +/-0.25MM | 3MM +/-0.2MM | 100 |
100 MM ID +/-0.25MM | 2.5MM +/-0.2MM | 110 |
110 MM ID +/-0.25MM | 2.5MM +/-0.2MM | 122 |
141 MM ID +/-0.25MM | 2.5MM +/-0.2MM | 150 |
187 MM ID +/-0.25MM | 2.2MM +/-0.2MM | 200 |
